OVERVIEW
<!–
–>

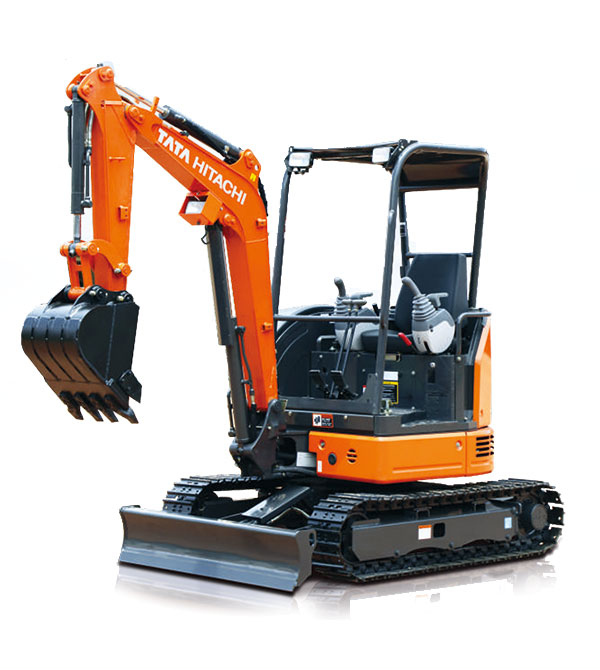

Ultra Short Tail Swing Machine
The design of the new ZAXIS mini excavator has evolved over time in keeping with changing customer expectations. The machine is a pleasure to operate and delivers superior performance. The latest introduction in this mini excavator segment – the new ZAXIS 23U – is a one stop solution for construction, infrastructure, agriculture and utility equipment needs of customers.
ZAXIS 23U is built to deliver high performance, high operator comfort and safety, and is easy to maintain. The engine and the hydraulic system efficiencies have been improved, emphasizing Tata Hitachi’s focus on people, environment, machinery and workability.
The operating space has been carefully designed for operator comfort and safety. The fully functional wide-open covers are aesthetic in looks. On opening, it enables the operator get a clear access to the wide maintenance area for improved serviceability.
ZAXIS 23U is a mini excavator designed to be used in a wide range of applications with ease. Tata Hitachi’s high performance hydraulic pilot levers enhance the operational efficiency of this machine. ZAXIS 23U is extremely versatile and ably meets the needs of different customer sites.
SPECIFICATIONS
17.7 PS
Engine Power
2,356 Kg
Operating Weight
0.07 m3
Bucket Capacity
FEATURES
COMPACT FORM
The new ZAXIS 23U hydraulic excavator comes with features, which enable the machine to work in extremely constrained spaces.
- Compact form factor (Track width of 1450mm)
- Zero Tail-swing feature
- Boom swing feature
Also, this compact and versatile machine can be transported easily and efficiently on small carrier pickup vehicles.
SAFETY
Thoughtful features have been provided in the ZAXIS 23U, aimed at providing a safer work environment for operators.
- 4 pillar canopy with ROPS / TOPS / OPG (Top guard level 1)
- Lock lever compulsory for engine start
- Convenient footstep for climbing
OPERATOR COMFORT
ZAXIS 23U is designed to give a comfortable operating environment to the operator. Be it the comfortable seating or the ergonomic positioning of controls, ZAXIS 23U reduces fatigue and makes working more comfortable
- Low noise engine
- Comfortable seating
- Ergonomically designed operator space
- Easy access to cabin
- Wrist rest
- Foot rest
EXCELLENT PERFORMANCE
Hitachi’s advanced hydraulic technology powers the ZAXIS 23U, taking the performance of the machine to benchmark levels.
- Advanced hydraulics
- Smooth pilot type levers for all operations
- New wrist control lever
- Convenient pedal for shifting second speed
EASY TO MAINTAIN
Wide opening covers and grouped inspection points help reduce strain on the operator and improves machine maintenance.
- Wide open covers with dust guard
- Ground level servicing of all major filters
- Parallel ROC helps in better cooling efficiency
- Vertical engine cover helps in carrying out maintenance in constrained space
- Easy access to engine from rear and top
QUALITY AND DURABILITY
Durability is built into the design of ZAXIS 23U. The specially designed arm end houses the bucket cylinder hoses for protection.
- Strong front-end attachment
- Sturdy bucket
- Boom cylinder cover
- Hydraulic hose protectors and guards
- Sturdy boom
