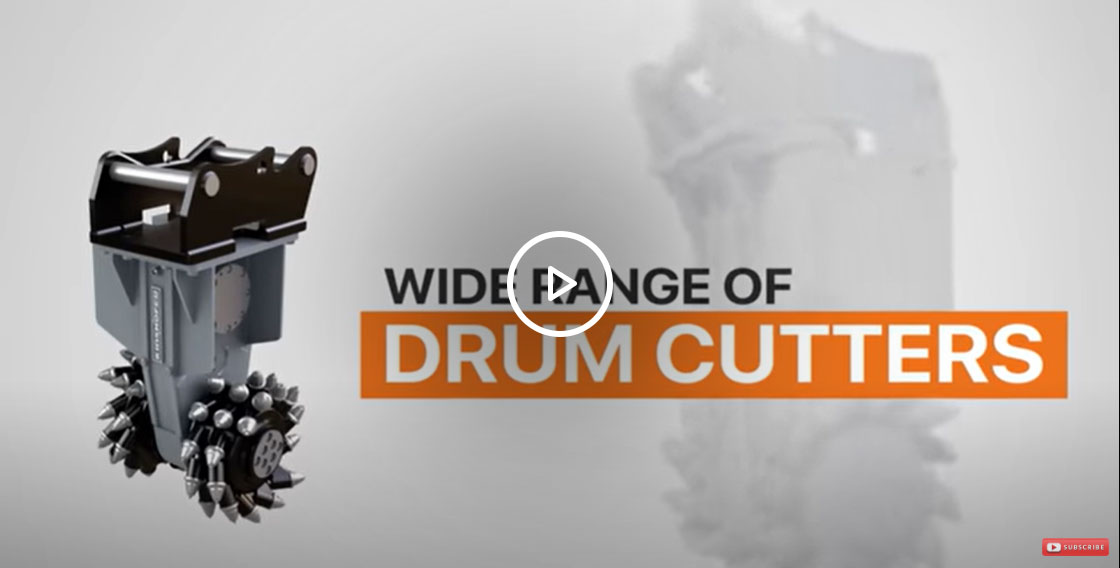

Drum Cutter

Rock Breakers Alicon Series

DRUM CUTTER

Rock Breakers Alicon Series

KDC08

Technical Specifications

Excavator Weight Class : 2 – 8 Ton
Hydraulic Power : 22 Kw
Operating Weight : 250 kg
Working Pressure : 215/180 bar
Oil Flow : 60 lpm
Drum Speed : 80 – 130 rpm
Cutter Torque : 4750 nm
Cutting Width : 500 mm
Suitable Tata Hitachi Models : Shinrai, EX 70 Prime

Rock Breakers Alicon Series

KDC15

Technical Specifications

Excavator Weight Class : 8 – 15 Ton
Hydraulic Power : 30 Kw
Operating Weight : 420 kg
Working Pressure : 225/180 bar
Oil Flow : 90 – 115 lpm
Drum Speed : 80 – 120 rpm
Cutter Torque : 7880 nm
Cutting Width : 630 mm
Suitable Tata Hitachi Models : EX 130, ZAXIS 140H

Rock Breakers Alicon Series

KDC20

Technical Specifications

Excavator Weight Class : 12 – 20 Ton
Hydraulic Power : 45 Kw
Operating Weight : 850 kg
Working Pressure : 200/180 bar
Oil Flow : 100 – 170 lpm
Drum Speed : 70 – 105 rpm
Cutter Torque : 9990 nm
Cutting Width : 750 mm
Suitable Tata Hitachi Models : EX 200LC, EX 210LC, ZAXIS 220LC

Rock Breakers Alicon Series

KDC30

Technical Specifications

Excavator Weight Class : 18 – 30 Ton
Hydraulic Power : 60 Kw
Operating Weight : 1350 kg
Working Pressure : 240/200 bar
Oil Flow : 140 – 210 lpm
Drum Speed : 60 – 90 rpm
Cutter Torque : 13650 nm
Cutting Width : 900 mm
Suitable Tata Hitachi Models : EX 200LC, EX 210LC, ZAXIS 220LC

Rock Breakers Alicon Series

KDC35

Technical Specifications

Excavator Weight Class : 25 -35 Ton
Hydraulic Power : 90 Kw
Operating Weight : 1400 kg
Working Pressure : 210/180 bar
Oil Flow : 240 – 340 lpm
Drum Speed : 60 – 80 rpm
Cutter Torque : 24150 nm
Cutting Width : 900 mm
Suitable Tata Hitachi Models : ZAXIS 370LCH

Rock Breakers Alicon Series

KDC45

Technical Specifications

Excavator Weight Class : 25 – 45 Ton
Hydraulic Power : 120 Kw
Operating Weight : 2550 kg
Working Pressure : 205/180 bar
Oil Flow : 300 – 500 lpm
Drum Speed : 50 – 80 rpm
Cutter Torque : 36200 nm
Cutting Width : 1200 mm
Suitable Tata Hitachi Models : ZAXIS 470H

Rock Breakers Alicon Series

KDC60

Technical Specifications

Excavator Weight Class : 40 – 60 Ton
Hydraulic Power : 150 Kw
Operating Weight : 2800 kg
Working Pressure : 225/190 bar
Oil Flow : 360 – 600 lpm
Drum Speed : 50 – 75 rpm
Cutter Torque : 43600 nm
Cutting Width : 1400 mm
Suitable Tata Hitachi Models : ZAXIS 650H

Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
