Rock Breakers (NPK)

GH-6

Excavator Weight Class 10-16 Ton
Operating Weight 950 kg
Oil Flow 90 ~ 150 lpm
Operating Pressure 140-170 Kgf/Cm2
Impact Blow Rate 450-800 Bpm
Chisel Diameter 106 mm
Chisel Length 966 mm
Suitable Tata Hitachi Models EX 110, ZAXIS 140H

GH-9

Excavator Weight Class 19-21 Ton
Operating Weight 1590 kg
Oil Flow 150 ~ 200 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 500-650 Bpm
Chisel Diameter 126 mm
Chisel Length 1200 mm
Suitable Tata Hitachi Models EX 210 LC,ZAXIS 220 LC,ZAXIS 220 LC – M

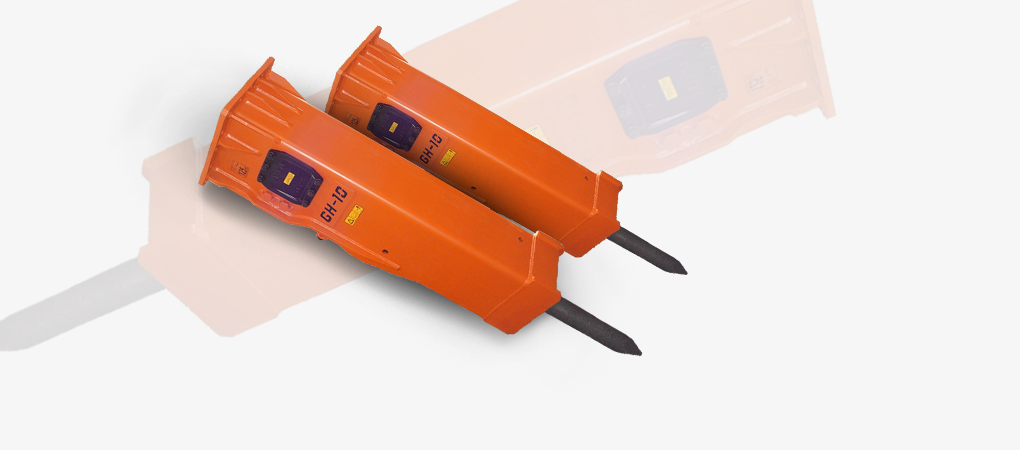

GH-10

Excavator Weight Class 19-21 Ton
Operating Weight 1810 kg
Oil Flow 165 ~ 210 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 430-550 Bpm
Chisel Diameter 136 mm
Chisel Length 1306mm
Suitable Tata Hitachi Models EX 210 LC,ZAXIS 220 LC,ZAXIS 220 LC – M

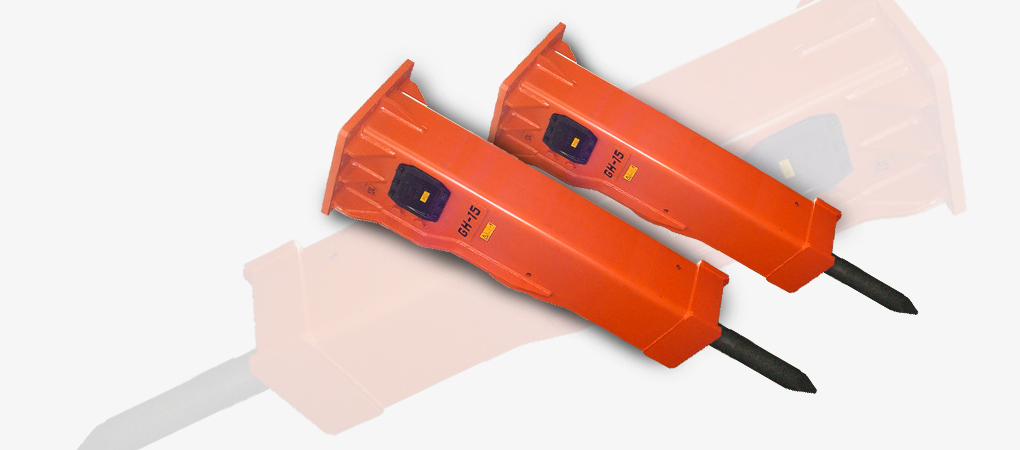

GH-15

Excavator Weight Class 29 ~ 38 Ton
Operating Weight 2895 kg
Oil Flow 150 ~ 200 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 350-450 Bpm
Chisel Diameter 156 mm
Chisel Length 1502 mm
Suitable Tata Hitachi Models ZAXIS 370 LCH

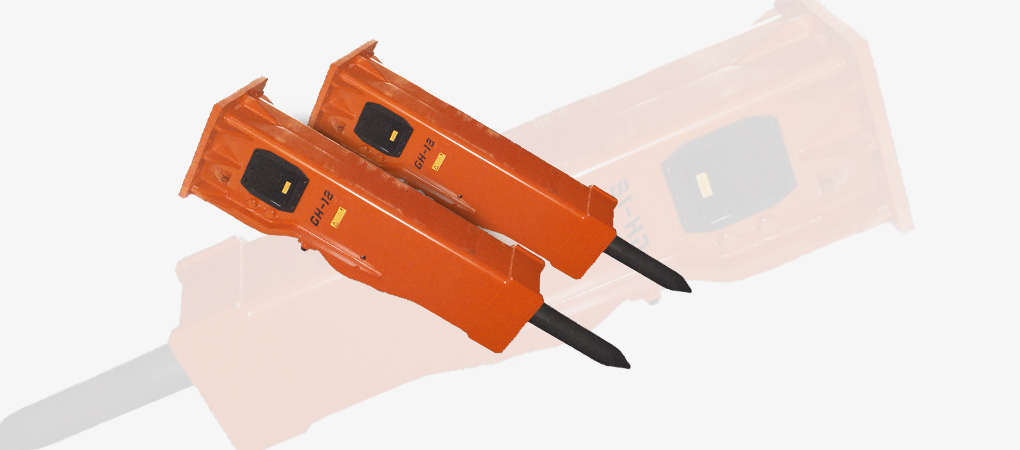

GH-18

Excavator Weight Class 39 ~ 48 Ton
Operating Weight 3430 kg
Oil Flow 220 ~ 290 lpm
Operating Pressure 140-172 Kgf/Cm2
Impact Blow Rate 300-400 Bpm
Chisel Diameter 165 mm
Chisel Length 1606 mm
Suitable Tata Hitachi Models ZAXIS 370 LCH,ZAXIS 400 MTH,ZAXIS 470 H

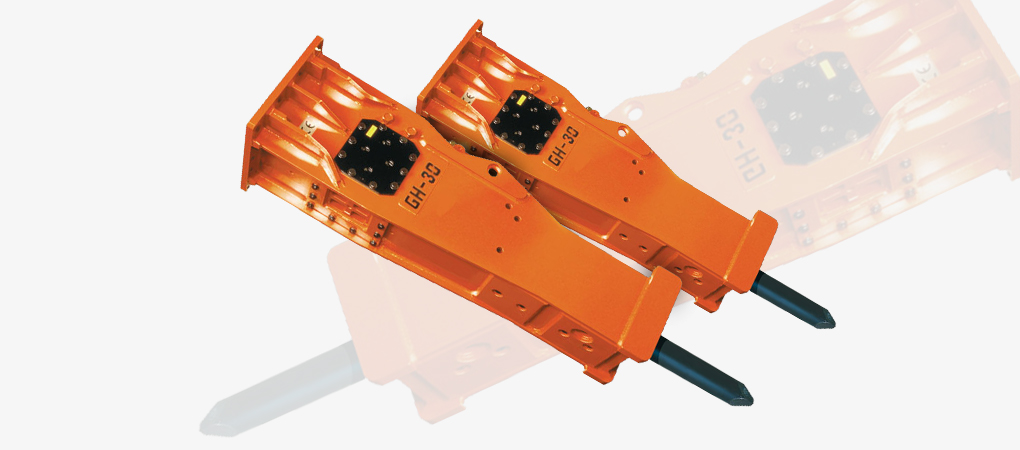

GH-30

Excavator Weight Class 60 ~ 80 Ton
Operating Weight 5470 kg
Oil Flow 280 ~ 350 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 310-390 Bpm
Chisel Diameter 184 mm
Chisel Length 1854 mm
Suitable Tata Hitachi Models ZAXIS 470 H,ZAXIS 650 H

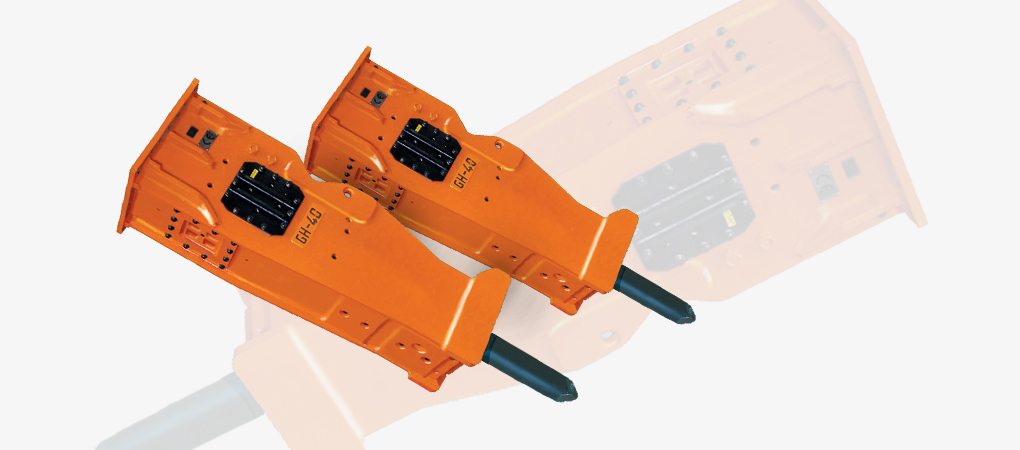

GH-40

Excavator Weight Class 90 ~ 110 Ton
Operating Weight 7750 kg
Oil Flow 300 ~ 400 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 240-330 Bpm
Chisel Diameter 204 mm
Chisel Length 1940 mm
Suitable Tata Hitachi Models ZAXIS 650 H,ZAXIS 870 5G

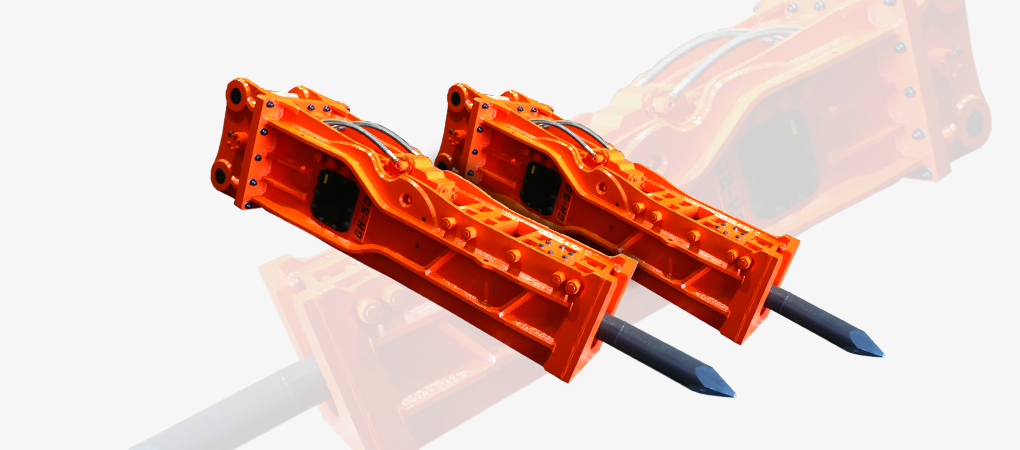

GH-50

Excavator Weight Class 100 ~ 120 Ton
Operating Weight 11300 kg
Oil Flow 350 ~ 450 lpm
Operating Pressure 150-180 Kgf/Cm2
Impact Blow Rate 210-280 Bpm
Chisel Diameter 214 mm
Chisel Length 2135 mm
Suitable Tata Hitachi Models EX 1200
