Rock Breakers (DAEMO- New Alicon)

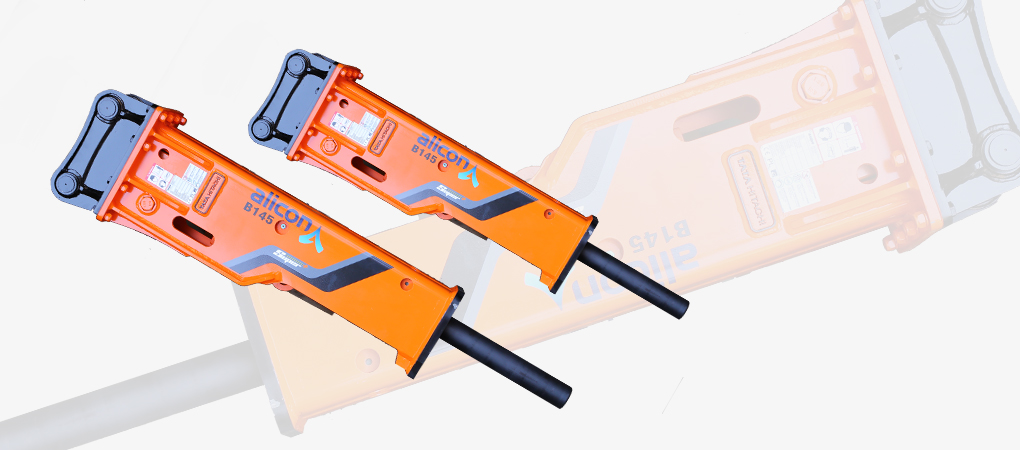

Alicon B145 Super +
| Excavator Weight Class |
10 ~ 15 Ton |
| Operating Weight |
959 kg |
| Oil Flow |
90 ~ 110 lpm |
| Operating Pressure |
120-160 Kgf/Cm2 |
| Impact Blow Rate |
350 ~ 550 bpm |
| Impact Blow Rate (H/Speed ) |
500 ~ 750 bpm |
| Chisel Diameter |
105 mm |
| Chisel Length |
975 mm |
| Suitable Tata Hitachi Models |
EX 110, ZAXIS 140H |

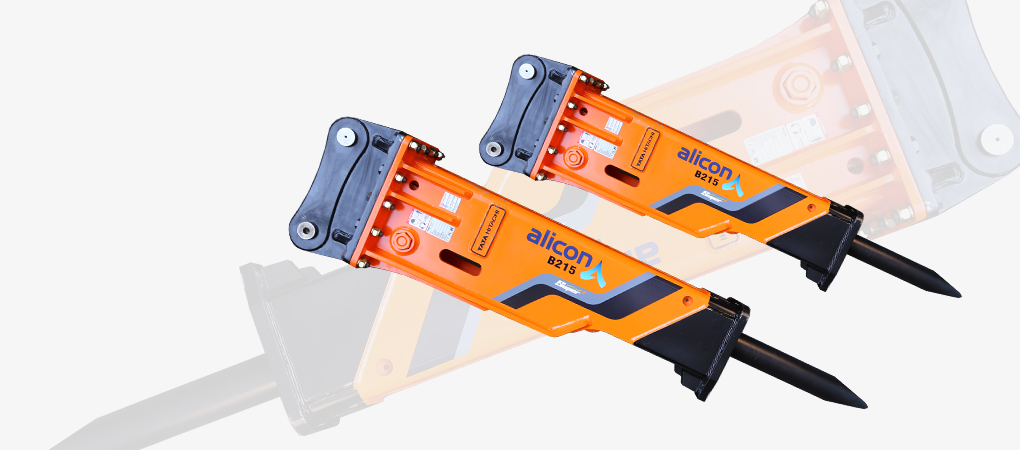

Alicon B215 Super +
| Excavator Weight Class |
18 ~ 25 Ton |
| Operating Weight |
1817 kg |
| Oil Flow |
110 ~ 160 lpm |
| Operating Pressure |
130-170 Kgf/Cm2 |
| Impact Blow Rate |
350 ~ 500 bpm |
| Impact Blow Rate (H/Speed ) |
450 ~ 600 bpm |
| Chisel Diameter |
135 mm |
| Chisel Length |
1300 mm |
| Suitable Tata Hitachi Models |
EX 210 LC,ZAXIS 220 LC,ZAXIS 220 LC – M |
Alicon B235 Super +
| Excavator Weight Class |
18 ~ 25 Ton |
| Operating Weight |
4397 kg |
| Oil Flow |
130 ~ 170 lpm |
| Operating Pressure |
130-180 Kgf/Cm2 |
| Impact Blow Rate |
250 ~ 400 bpm |
| Impact Blow Rate (H/Speed ) |
350 ~ 500 bpm |
| Chisel Diameter |
140 mm |
| Chisel Length |
1300 mm |
| Suitable Tata Hitachi Models |
EX 210 LC,ZAXIS 220 LC,ZAXIS 220 LC – M |
