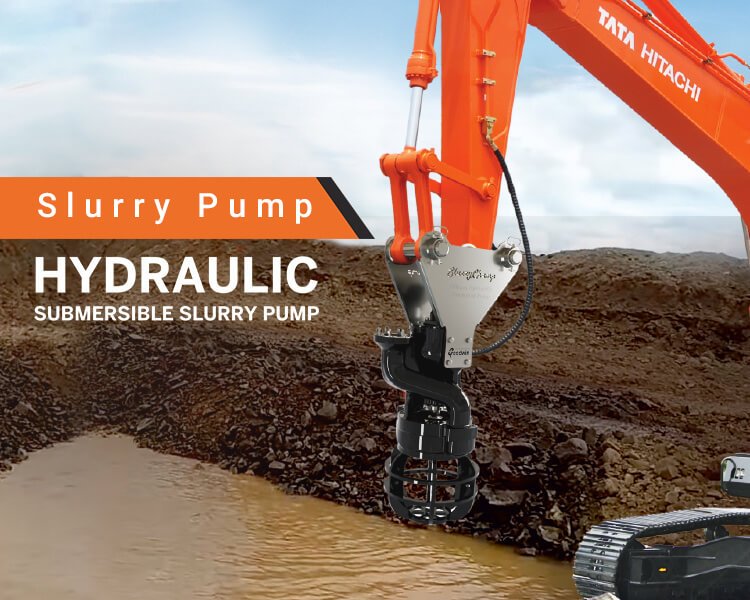

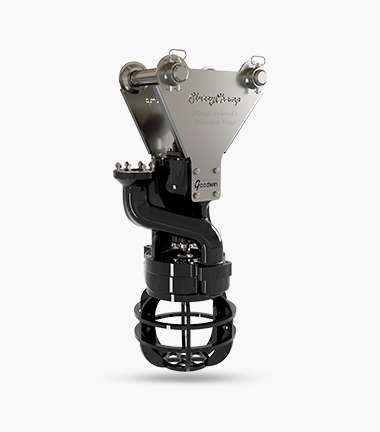

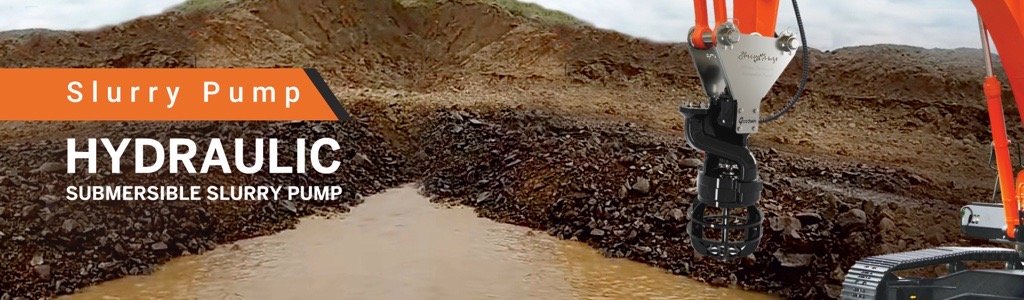

Slurry Pump

Slurry Pump
Slurry Pump

Slurry Pump

Technical Specifications

Excavator Weight Class : 10 – 30 Ton
Oil Flow Rate required for 1500 rpm * : 93 lpm (without side cutter)
Operating Weight : 510 kg
Oil pressure required for pumping slurry upto 2.0kg/l: 196 bar (without side cutter)
Maximum Flow : 230 m3/h
Maximum Submergence Depth : 28 m
Pumping Lift : 10 m
Maximum head at minimum flow : 37m
Optimum operating speed : 1500rpm
Maximum pumped slurry specific gravity (sg) : 2.0 kg/l
Maximum pumped slurry solids content : 55% by weight
Maximum pumped particle size : 32 mm dia
Recommended ph range : 4-10
Weight of pump with Quick Hitch Frame : 525 kg (without side cutter)
Pump outlet diameter ** : 100 mm

Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
