Rock Breakers (Alicon Series)
September 21, 2021 by admin
Home Construction Attachments Rock Breakers (Alicon Series)
Alicon B30
Technical Specifications
Excavator Weight Class :
2 ~ 4 Ton
Operating Weight :
180 kg
Oil Flow :
25 ~ 45 lpm
Operating Pressure :
80-120 bar
Impact Blow Rate :
600 ~ 1100 bpm
Overall Length (w/STD.MTG.BKT) :
1334
Chisel Diameter :
53 mm
Chisel Length :
570 mm
Suitable Tata Hitachi Models :
TMX20 Neo, ZAXIS23U, ZAXIS33U

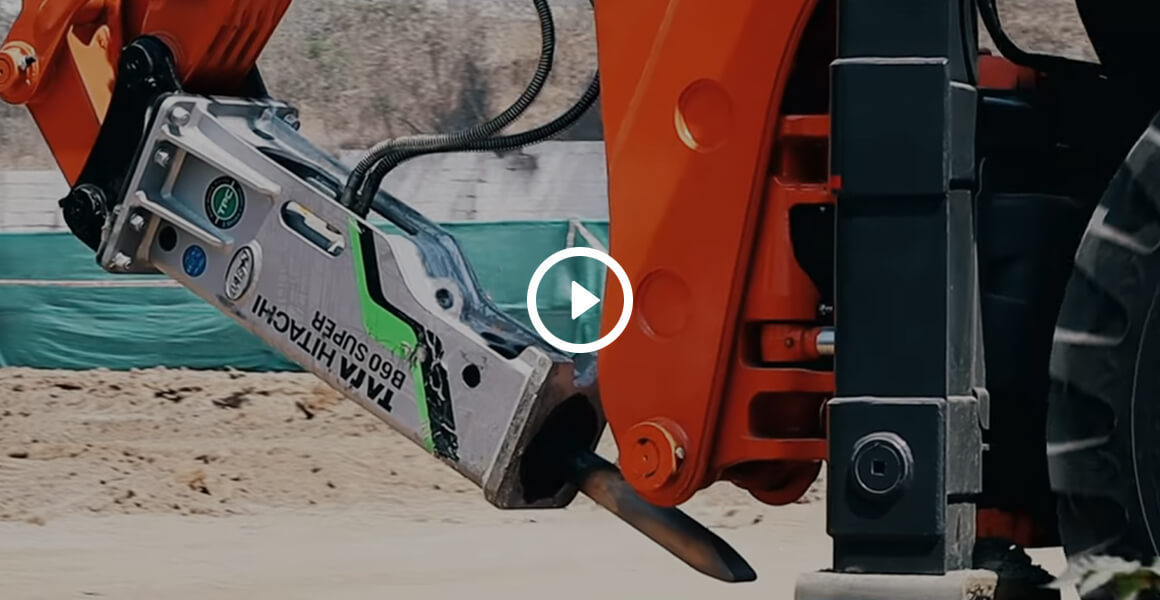

Alicon B60 Super
Technical Specifications
Excavator Weight Class :
4 ~ 8 Ton
Operating Weight :
375 kg
Oil Flow :
35 ~ 70 lpm
Operating Pressure :
100-140 bar
Impact Blow Rate :
350 ~ 800 bpm
Impact Blow Rate (H/Speed ) :
450 ~ 1000 bpm
Overall Length (w/STD.MTG.BKT) :
1635 mm
Chisel Diameter :
75 mm
Chisel Length :
780 mm
Suitable Tata Hitachi Models :
SHINRAI
Alicon B70 Super
Technical Specifications
Excavator Weight Class :
6 ~ 8 Ton
Operating Weight :
431 kg
Oil Flow :
45 ~ 80 lpm
Operating Pressure :
100-140 bar
Impact Blow Rate :
350-900 bpm
Impact Blow Rate (H/Speed ) :
450-1000 bpm
Overall Length (w/STD.MTG.BKT) :
1805 mm
Chisel Diameter :
78 mm
Chisel Length :
806 mm
Suitable Tata Hitachi Models :
EX70, SHINRAI
Alicon B360
Technical Specifications
Excavator Weight Class :
28 ~ 40 Ton
Operating Weight :
2937 kg
Oil Flow :
180 ~ 250 lpm
Operating Pressure :
140-180 bar
Impact Blow Rate :
200 ~ 350 bpm
Impact Blow Rate (H/Speed ) :
300 ~ 480 bpm
Overall Length (w/STD.MTG.BKT) :
3200 mm
Chisel Diameter :
155 mm
Chisel Length :
1400 mm
Suitable Tata Hitachi Models :
ZAXIS370LCH
Alicon B450
Technical Specifications
Excavator Weight Class :
38 ~ 50 Ton
Operating Weight :
3713 kg
Oil Flow :
200 ~ 280 lpm
Operating Pressure :
140-180 bar
Impact Blow Rate :
200 ~ 300 bpm
Impact Blow Rate (H/Speed ) :
300 ~ 450 bpm
Chisel Diameter :
165 mm
Chisel Length :
1650 mm
Suitable Tata Hitachi Models :
ZAXIS370LCH, ZAXIS400MTH, ZAXIS470H
Alicon B650
Technical Specifications
Excavator Weight Class :
42 ~ 81 Ton
Operating Weight :
4380 kg
Oil Flow :
280 ~ 400 lpm
Operating Pressure :
150-190 bar
Impact Blow Rate :
250 ~ 420 bpm
Impact Blow Rate (H/Speed ) :
300 ~ 500 bpm
Chisel Diameter :
180 mm
Chisel Length :
1500 mm
Suitable Tata Hitachi Models :
ZAXIS470H, ZAXIS650H
Alicon B850
Technical Specifications
Excavator Weight Class :
55 ~ 100 Ton
Operating Weight :
5625 kg
Oil Flow :
320 ~ 450 lpm
Operating Pressure :
150-190 bar
Impact Blow Rate :
200-350 bpm
Impact Blow Rate (H/Speed ) :
250-400 bpm
Chisel Diameter :
200 mm
Chisel Length :
1700 mm
Suitable Tata Hitachi Models :
ZAXIS650H, ZAXIS8705G
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from
the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site
and operating conditions encountered.
