Rock Breakers (New Alicon Series)
September 16, 2021 by admin
Home Construction Attachments Rock Breakers (New Alicon Series)
ALICON B145 SUPER+
Technical Specifications
Excavator Weight Class :
10 ~ 15 Ton
Operating Weight :
959 kg
Oil Flow :
90 ~ 110 lpm
Operating Pressure :
120-160 bar
Impact Blow Rate :
350 ~ 550 bpm
Overall Length (w/STD.MTG.BKT) :
2263 mm
Chisel Diameter :
105 mm
Chisel Length :
975 mm
Suitable Tata Hitachi Models :
EX130, ZAXIS140H

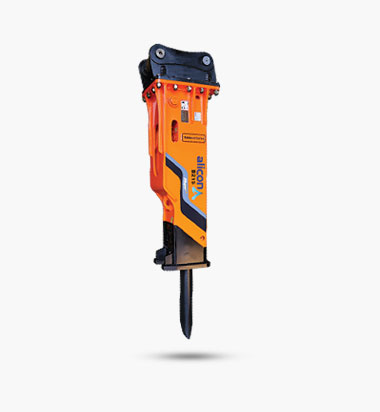

ALICON B215 SUPER+
Technical Specifications
Excavator Weight Class :
18 ~ 25 Ton
Operating Weight :
1817 kg
Oil Flow :
110 ~ 160 lpm
Operating Pressure :
130-170 bar
Impact Blow Rate :
350 ~ 500 bpm
Overall Length (w/STD.MTG.BKT) :
2841 mm
Chisel Diameter :
135 mm
Chisel Length :
1300 mm
Suitable Tata Hitachi Models :
EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M

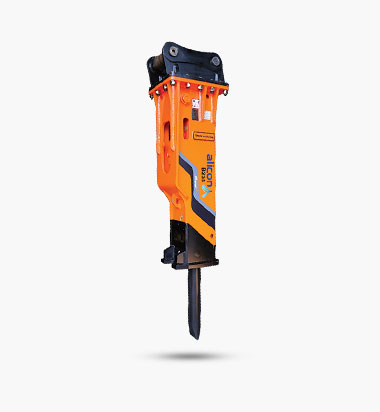

ALICON B235 SUPER+
Technical Specifications
Excavator Weight Class :
18 ~ 25 Ton
Operating Weight :
1856 kg
Oil Flow :
130 ~ 170 lpm
Operating Pressure :
130-180 bar
Impact Blow Rate :
250 ~ 400 bpm
Overall Length (w/STD.MTG.BKT) :
2841 mm
Chisel Diameter :
140 mm
Chisel Length :
1300 mm
Suitable Tata Hitachi Models :
EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from
the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site
and operating conditions encountered.
