QUICK COUPLERS

Quick Couplers

RANGE 3

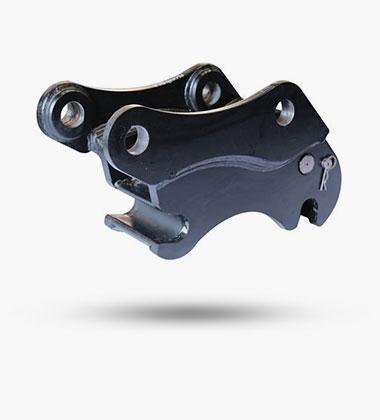

Mechanical Quick Coupler

Technical Specifications

Excavator Weight Class :4 -8 Ton
Operating Weight :87 kg
Front and Rear Pin diameter :50 & 55 mm
Attachments pick up range :348-350mm
Suitable Tata Hitachi Models :SHINRAI

Quick Couplers

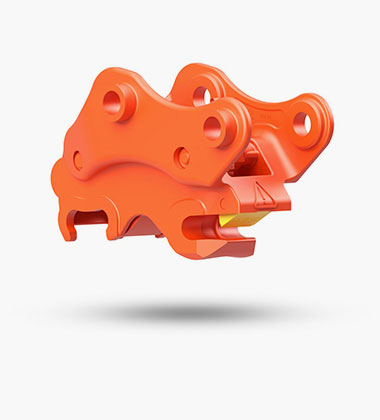

RANGE 4

Technical Specifications

Excavator Weight Class :11 ~ 15 Ton
Operating Weight :180 kg
Front and Rear Pin diameter ( A & A ) :60 ~ 65 mm
Attachments pick up range ( B & C ) :345 – 415 mm
Suitable Tata Hitachi Models :EX130, ZAXIS140H

Quick Couplers

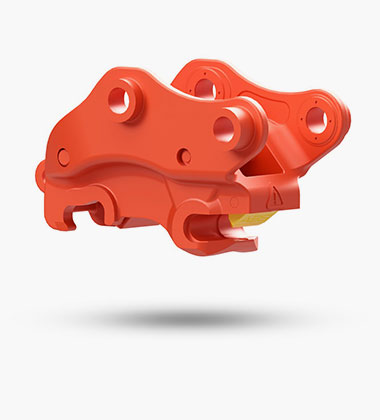

RANGE 6

Technical Specifications

Excavator Weight Class :19 ~ 23 Ton
Operating Weight :310 kg
Front and Rear Pin diameter ( A & A ) :80 ~ 80 mm
Attachments pick up range ( B & C ) :430 – 520 mm
Suitable Tata Hitachi Models :EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M

Quick Couplers

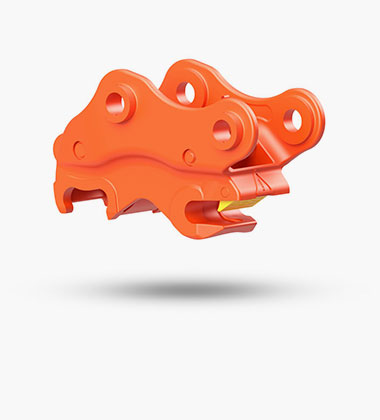

RANGE 8

Technical Specifications

Excavator Weight Class :30 ~ 39 Ton
Operating Weight :560 kg
Front and Rear Pin diameter ( A & A ) :90 ~ 100 mm
Attachments pick up range ( B & C ) :482 – 602 mm
Suitable Tata Hitachi Models :ZAXIS370LCH

Quick Couplers

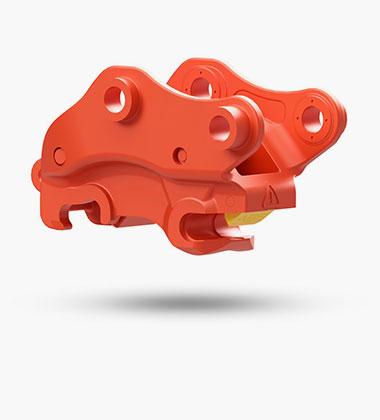

RANGE 9

Technical Specifications

Excavator Weight Class :40 ~ 49 Ton
Operating Weight :850 kg
Front and Rear Pin diameter ( A & A ) :100 ~ 110 mm
Attachments pick up range ( B & C ) :572 – 603 mm
Suitable Tata Hitachi Models :ZAXIS470H

Quick Couplers

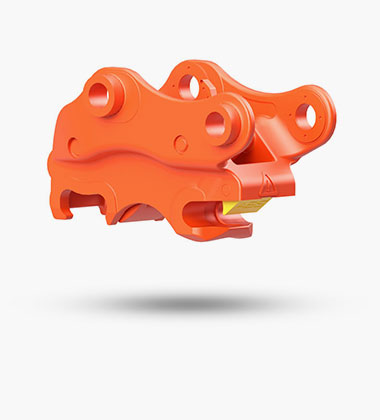

RANGE 11

Technical Specifications

Excavator Weight Class :65 ~ 70 Ton
Operating Weight :1350 kg
Front and Rear Pin diameter ( A & A ) :120 ~ 130 mm
Attachments pick up range ( B & C ) :640 – 645 mm
Suitable Tata Hitachi Models :ZAXIS650H

Quick Couplers

RANGE 13

Technical Specifications

Excavator Weight Class :100 ~ 120 Ton
Operating Weight :2120 kg
Front and Rear Pin diameter ( A & A ) :120 ~ 130 mm
Attachments pick up range ( B & C ) :640 – 645 mm
Suitable Tata Hitachi Models :EX1200V

Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
