Orange Peel Grab

ORANGE PEEL GRAB

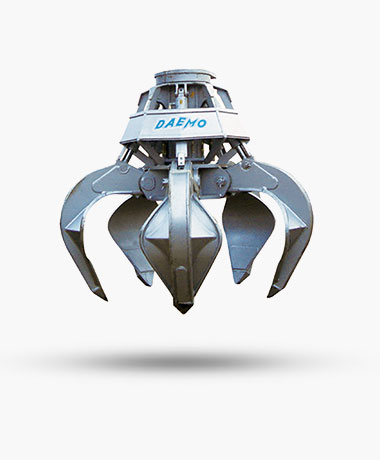

Orange Peel Grab for Light Weight Applications

DMSG800

Technical Specifications
Excavator Weight Class :18 ~ 25 Ton
Operating Weight :1200 kg
Capacity :0.7 m3
Max Clamping Force :10.8 ton
A Max Opening width :1820 mm
B Closing width :1290 mm
H Opening length :1630 mm
H1 overall length :1905 mm
Standard Tines no :5 ea
Suitable Tata Hitachi Models :EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M

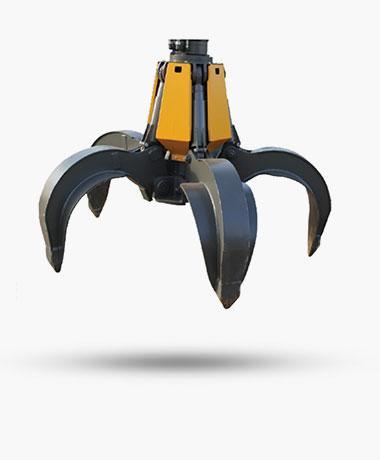

Orange Peel Grab for Heavy Duty Applications

HiOG – 600.25

Technical Specifications
Excavator Operating Weight (Ton)(**)12 – 22 Ton
Grab capacity :0.6 m3
Dead weight in kg by Tines designOpen – 1245 Semi-Open – 1310 Closed – 1395
Number of Tines (**)5 nos.
Max. lifting capacity3.5 Ton

HiOG – 800.25

Technical Specifications
Excavator Operating Weight (Ton)(**)12 – 22 Ton
Grab capacity :0.8 m3
Dead weight in kg by Tines designOpen – 1270 Semi-Open – 1330 Closed – 1440
Number of Tines (**)5 nos.
Max. lifting capacity3.5 Ton

HiOG – 2000.28-S

Technical Specifications
Excavator Operating Weight (Ton)(**)20 – 40 Ton
Grab capacity :2 m3
Dead weight in kg by Tines designOpen – 2210 Semi-Open – 2380 Closed – 2700
Number of Tines (**)5 nos.
Max. lifting capacity6 Ton
* 5 no. Tines are standard. ** No. of tines can be changed depending upon the material size & shape. *** As per Excavator Arm width & Arm pin diameter
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
